Capsule filter is also called disposable filter cartridge, strictly speaking, it belongs to a filter unit and should be classified into the category of filter housing. Due to its small volume and small filtering area, the capsule filter is very suitable for small flow liquid and gas filtration. Including valuable pharmaceuticals, special chemical filtration that cannot come into contact with metals, and air sterilization filtration for small fermentation systems.

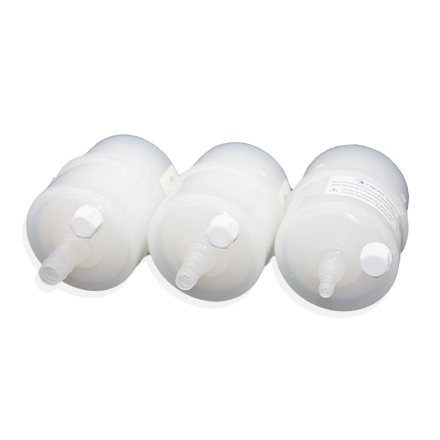

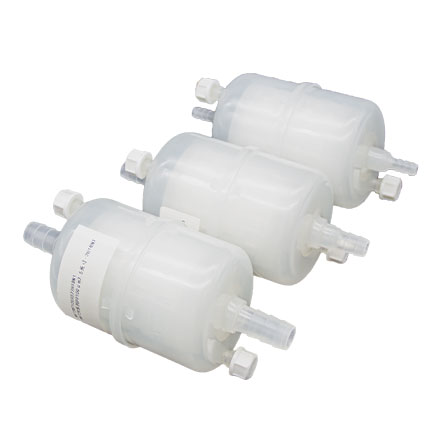

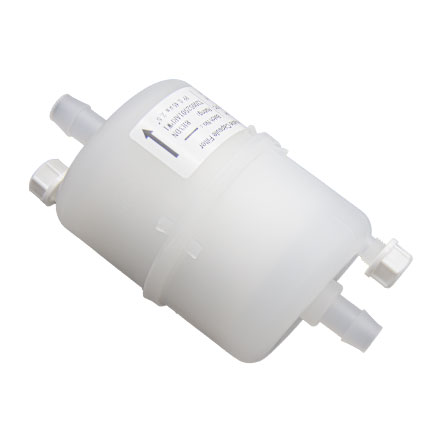

TNA series 4H1N/2H1N/8H3N type capsule filter is a small filter with a variety of capacities and volumes. Inlet/outlet can be 1/4”,1/2”,3/8” hose barb,Vent/drain is 1/8”NPT,which is easy to be operated and replaced.The internal filter cartridge can be matched with a variety of filter membrane and sizes can be customized if needed.
Suitable for small doses such as laboratories and pre- filtration or terminal filtration in various industries.
Ultrasonic welding without any adhesive
For small batch production and scale-up evaluation
Minimal hold-up ensures minimal waste
Prefilters for reverse osmosis and ultrafiltration
Filtration of aqueous and solvent samples
Analysis and filtration of water samples
Sterilization analysis and filtration of aqueous solutions
| Filtration Media | PP, PES, PVDF, PTFE, Nylon,Fiberglass, ACF |
| Media Support | PP non-woven |
| Cage | PP |
| Core | PP |
| Out Diameter | 72mm |
| Length | 2.5", 5", 7.5", 10" |
| Retention rating | 0.1, 0.22, 0.45, 1.0, 3.0, 5.0μm |
| Effective Filtering area | 0.1㎡，0.2㎡，0.3㎡，0.4㎡ |
| PH value | 2~13 |
| Normal operating temperature | ≤65℃ |
| Max. operating temperature | 80℃ @ ΔP<0.10Mpa |
| Max. differential pressure | 25℃,Forward 0.42Mpa, reverse 0.21MPa |
| Endotoxin | <0.25EU/ml |
| Extractive | <0.03g |
| Sterilization | Autoclave sterilization for 30minutes at 121℃，3cycles |
