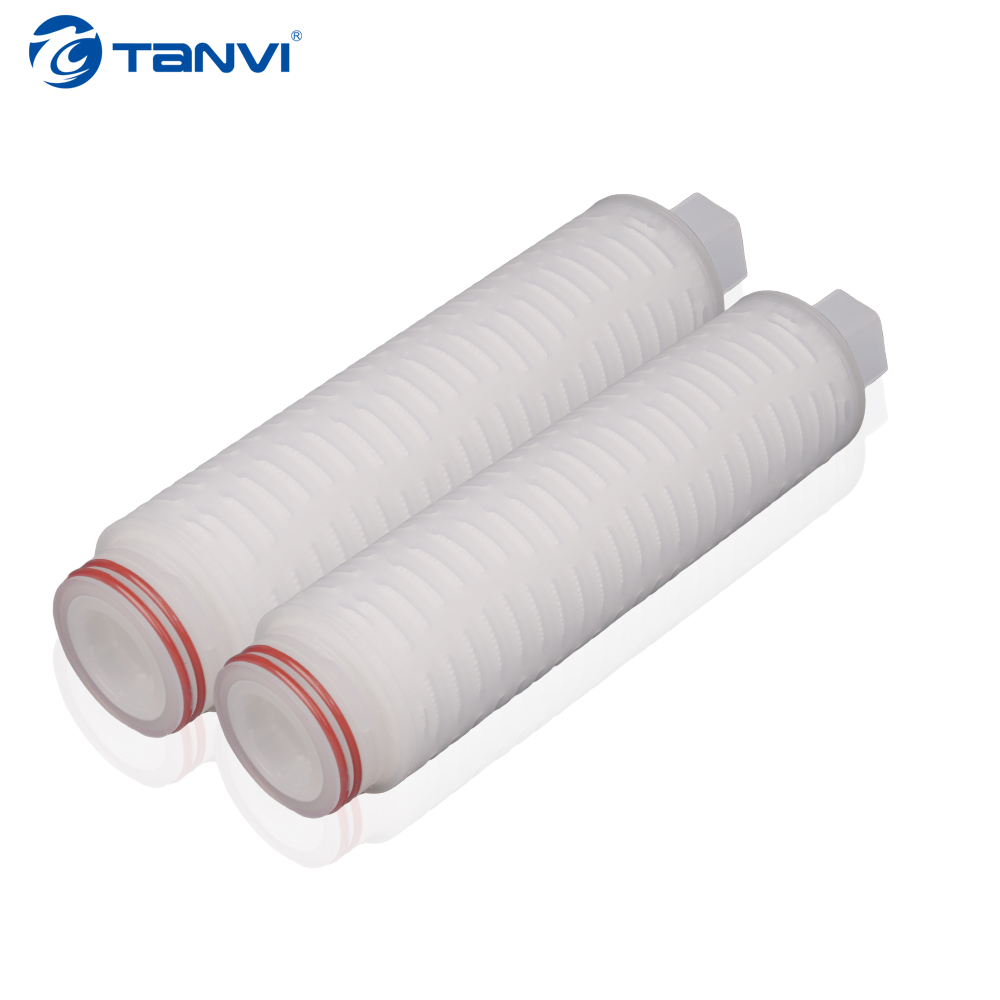

Nylon pleated filter cartridge adopting composite N6 filter membrane with support layer has good mechanical properties and strong protein absorption. The support guide layer is made of imported polypropylene material which is made by hot melt welding, without any adhesion Agent, no medium falls off. The filter cartridge is suitable for filtering alkaline solutions. It can be used for fine filtration of various liquids, pre-filtration and bioburden reduction.
The filter cartridge is 100% integrity tested before delivery. The integrity value is related to the bacterial challenge.
Each filter cartridge has an independent serial number, which can fully trace the production batch and usage.
Nylon filter membrane is naturally hydrophilic, can be water-wettable
High capacity and long life.
Sterilization and remove heat source (endotoxin) for pharmaceutical water, biological products and pharmaceutical solvents.
Filtration of solvents and solvents in the production process of APIs. Bacteria industry liquor, wine, fruit wine, beverage sterilization filtration and clarification filtration, drinking water, fruit juice, seasoning, syrup, dairy products, edible oil, MSG and other food additives clarification, CIP water filtration
Filter Media | Nylon6 or Nylon66 |
Support diversion layer | PP |
Extended/Center core | PP |
Interface lining | No or stainless steel |
O-ring material | Silicone,Viton,EPDM,Buna-N |
Working temperature | 80℃ (△P≤0.10Mpa) |
Maximum working pressure | Forward 4.2bar；Reverse1.5bar （25℃） |
PH range | 6-13 |
Cleanliness | The product itself does not have any foreign matter such as particles, fibers, etc. |
Biosafety | All ingredients meet USP (United States Pharmacopeia) Class VI plastic testing |
