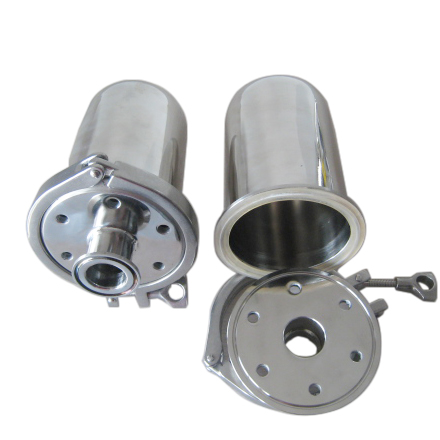

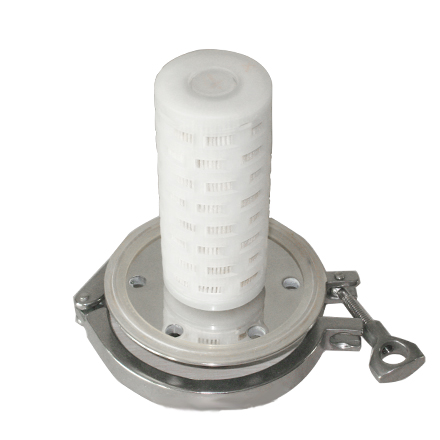

Tanvi in-line filter housings are designed to meet the requirements of the bioparmaceutical industry.All 316L or 304 stainless steel construction with polishing offers excellent cleanability features. There is a sanitary drain valve ensuring proper liquid drainage during application and industry standard 222 or 226 style cartridges can be accepted.
▶ Crevice-free polished surfaces and fully self draining
▶ No dead corner
▶ Low hold-up volumes for maximum product recovery
▶ Quick fit type connections for easy filter integrity testing
▶ Easy to use low point sanitary drain valve
▶ Range of options to aid use in automated production systems
▶ Water tanks
▶ Tanks of beer brewing
▶ Air filtration of fermentation
▶ Vent filters for pharmaceutical production
Operation Conditions | Max operation pressure | 0.6 Mpa, 1.0Mpa |
Max operation temperature | 150℃ | |
Materials | Filter Housing | SUS304, SUS316L |
Filter cartridge | PTFE, PP, Fiberglass, Sintered nets | |
O-ring | EPDM, Viton, Silicone, NBR | |
Surface Finish | Polishing Type | Mechanical/electrolytic Polishing |
Polishing precision | 0.4μm | |
Connection | Shell Connection | Clamp |
Inlet/Outlet Connection | Clamp, Flange, Thread | |
Dimension Parameters | Length of Cartridge | 2.5”, 5”,10” |
Diameter of Shell | 76mm, 89mm, 102mm | |
Height of the Vent Filter | 130mm, 194mm, 320mm | |
Dimension of Inlet/Outlet | 1”, 1.5”, 2” Clamp |
