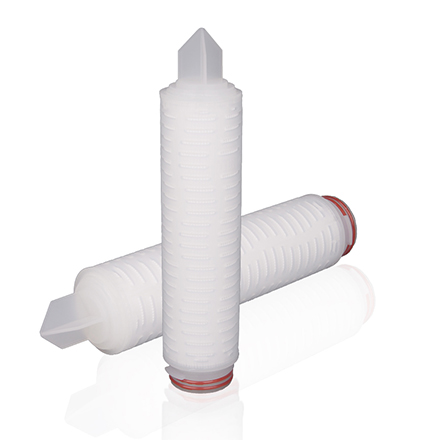

FAPS series PES pleated filter cartridge, the filter membrane adopts double-layer asymmetric polyethersulfone membrane imported from Germany, with uniform pore type and high porosity. The support diversion layer is made of imported polypropylene material and is made by hot-melt welding without any Adhesive, no medium shedding. The double-layer composite structure makes it have better filtering performance and more reliable bacteria retention ability.
The filter element is 100% integrity tested before it leaves the factory. The integrity value is related to the bacterial challenge.
Each filter element has an independent serial number, which can fully trace the production batch and usage
Asymmetric PES membrane with excellent flow rate and high capacity per membrane area
Fluid compatibility over a wide pH range for many applications
Rapid filtration of various liquids such as buffers, serums
Biological products, tissue culture fluids, eye drops,
Protein solutions, fermentation tank feeds, antibiotics
large and small volume injections
| Filtration Media | PES membrane |
| Media Support | PP non-woven |
| Cage | PP |
| Core | PP or PP with stainless lining |
| Outter Diameter | 69mm |
| Inner Diameter | 32mm |
| Length | 2.5~40" |

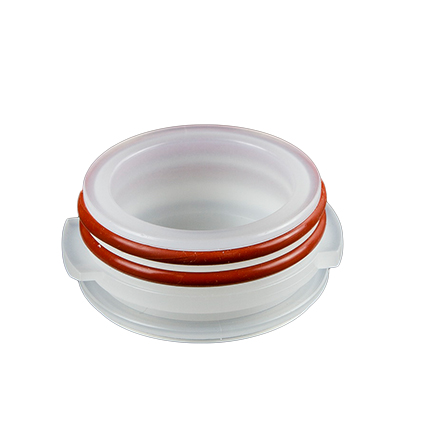

| O-ring | Silicone,EPDM,Nitrile, Viton ,PTFEencapsulating Viton |
| Retention rating | 0.1, 0.22, 0.45, 1.0, 3.0μm |
| Effective Filtering area | 0.65sq.m |
| PH value | 2~13 |
| Normal operating temperature | 65℃ |
| Max. operating temperature | 90℃,0.10Mpa |
| Max. differential pressure | 25℃,Forward 0.42Mpa, reverse 0.21MPa |
| Endotoxin | <0.25EU/ml |
| Extractive | <0.03g/10"cartridge |
| Sterilization | Steam sterilization for 30minutes at 121℃，15cycles |
