Hydrophilic PTFE Pleated Filter Cartridge

Hydrophilic PTFE pleated filter cartridge, the filter membrane is made of modified hydrophilic PTFE composite membrane, which overcomes the hydrophilic, and has strong corrosion resistance and oxidation resistance. The support diversion layer is made of imported polypropylene material. It is made by hot melt welding, without any adhesive, and without medium falling off. It is widely used in the sterilization filtration of liquids with strong corrosiveness and strong oxidation, as well as the sterilization filtration of solvents for injections and APIs in the pharmaceutical industry.

Features and Benefits

Natural strong hydrophilicity, the highest quality gas sterilization filter material.

Absolute sterilization can be guaranteed under wet or dry conditions.

Each filter cartridge has an independent serial number, which can fully trace the production batch

The filter cartridge is 100% integrity tested before it leaves the factory.

No surfactants or binder resins
Application

Liquid sterilization filtration in the biopharmaceutical industry

Injections, bulk drug solvents, disinfectants, etc.

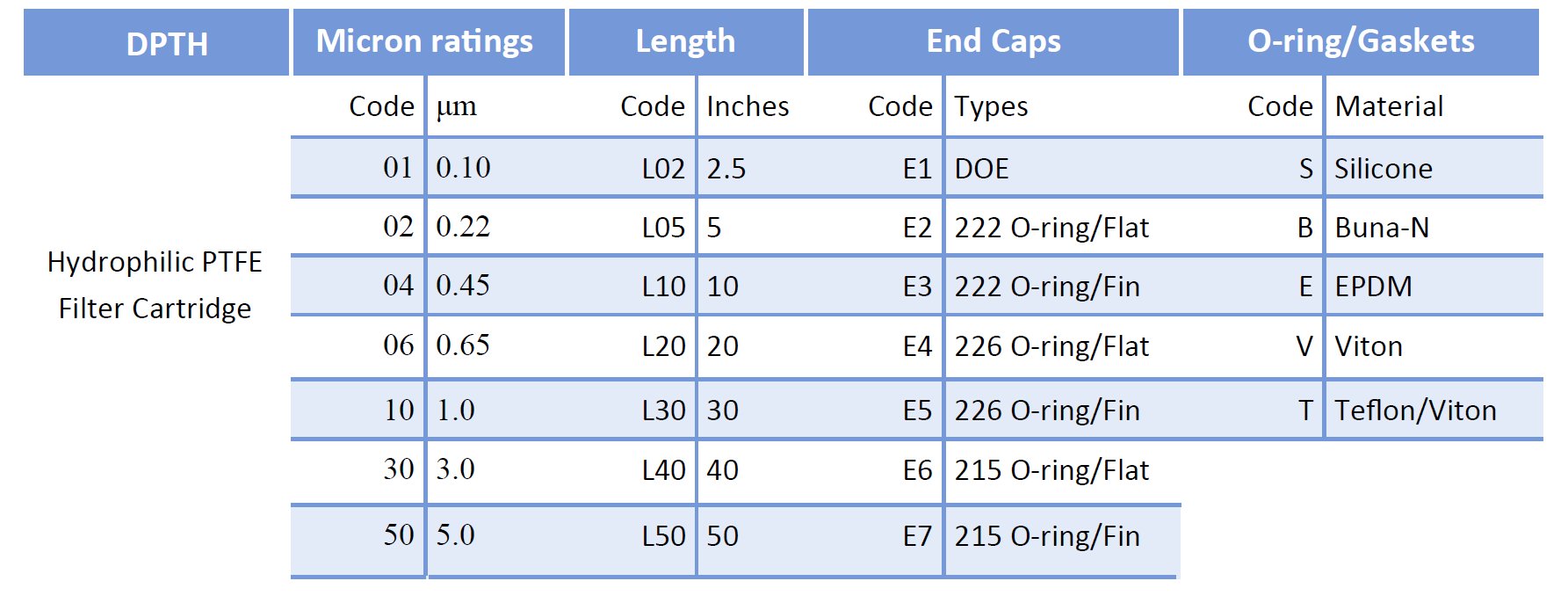

Specification Flow Rate Order Information

Filter Media	Hydrophilic PTFE
Support diversion layer	PP
Extended/Center core	PP
Interface lining	No or stainless steel
O-ring material	Silicone,Viton,EPDM,Buna-N
Maximum working temperature	80℃ (△P≤0.10Mpa)
Maximum working pressure	Forward 4.2bar；Reverse1.5bar （25℃）
PH range	1-14
Cleanliness	The product itself does not have any foreign matter such as particles, fibers, etc.
Biosafety	All ingredients meet USP (United States Pharmacopeia) Class VI plastic testing
