Capsule filter is also called disposable filter cartridge, strictly speaking, it belongs to a filter unit and should be classified into the category of filter housing. Due to its small volume and small filtering area, the capsule filter is very suitable for small flow liquid and gas filtration. Including valuable pharmaceuticals, special chemical filtration that cannot come into contact with metals, and air sterilization filtration for small fermentation systems.

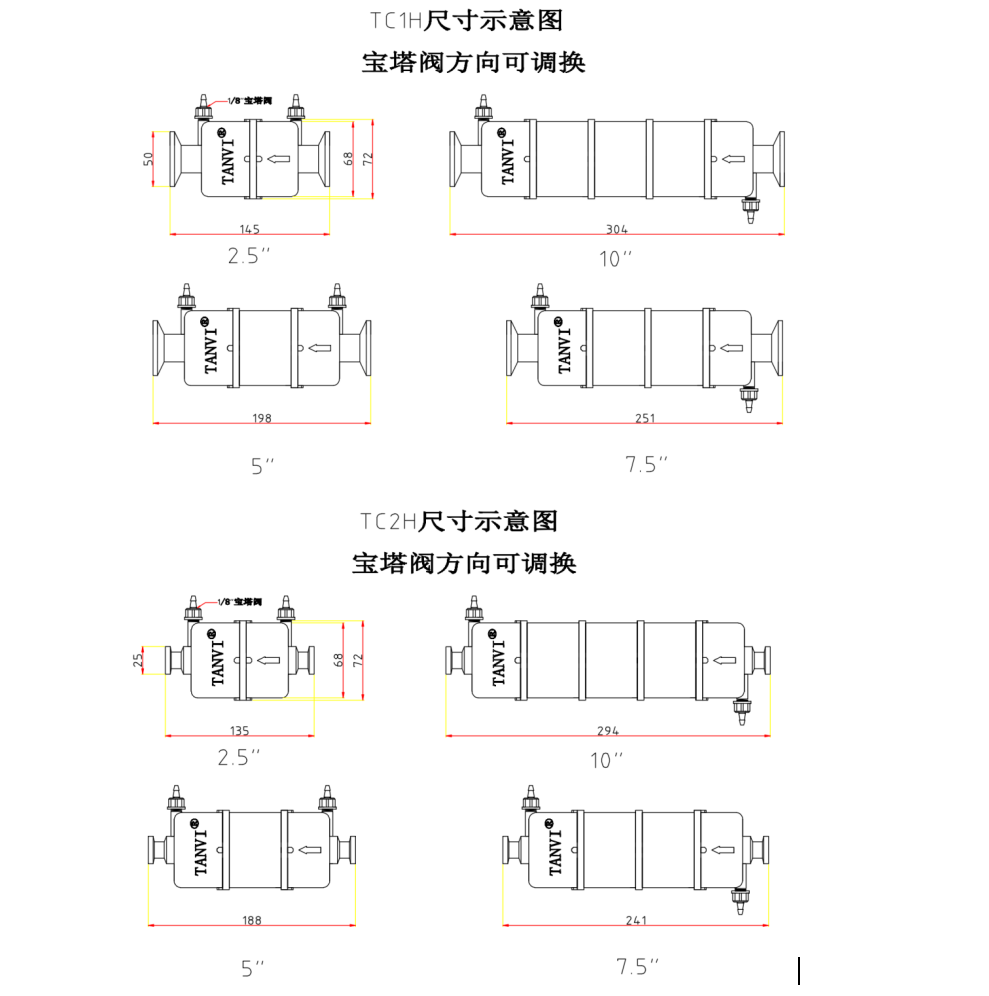

TNA series TC1H/TC2H type capsule filter is a small filter with a variety of capacities and volumes. The inlet and outlet can be 1”clamp, 1/2” clamp, the vent and drain is 1/8”hose barb, which is easy to be operated and replaced. The The internal filter cartridge can be matched with a variety of filter membrane and sizes can be customized if needed.
It is especially suitable for small doses such as laboratories and pre- filtration or terminal filtration in various industries.
Ultrasonic welding without any adhesive
For small batch production and scale-up evaluation
Minimal hold-up ensures minimal waste
Prefilters for reverse osmosis and ultrafiltration
Filtration of liquids, small injections, tissue culture fluids and other liquids in the pharmaceutical industry
Air and gas vent filtration
Filtration of liquids, tissue culture fluids and other liquids in the pharmaceutical industry
Filter Media | PP, GF,PES,N6,N66,PTFE,PVDF,ACF |
Support diversion layer | PP |
Housing | PP |
Interface lining | No or stainless steel |
O-ring material | Silicone,Viton,EPDM,Buna-N |
Maximum working temperature | 80℃ (△P≤0.10Mpa) |
Maximum working pressure | Forward 4.2bar；Reverse1.5bar （25℃） |
PH range | 1-14 |
Cleanliness | The product itself does not have any foreign matter such as particles, fibers, etc. |
Biosafety | All ingredients meet USP (United States Pharmacopeia) Class VI plastic testing |
