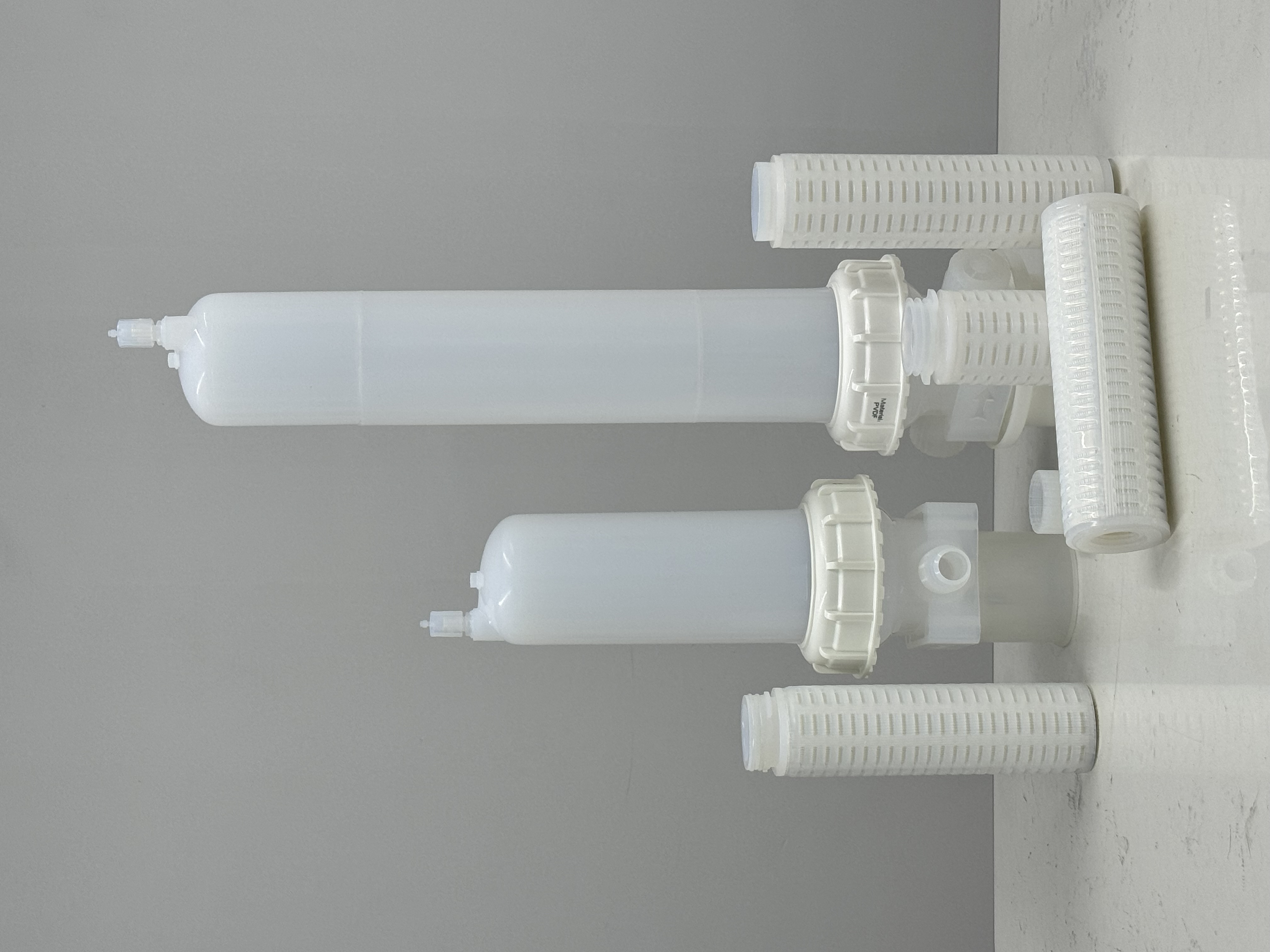

Tanci PFA filter housing is made of high-purity PFA material, the shell design is simple and compact, easy to install, when disassembling, the filter element and the shell are diassembled as a whole, reducing the contact between human body and chemicals. The filter is suitable for standard 222 flat connector filter cartridge, suitable for filtering a vartiety of highly corrosive gases and liquids.
Filter cartridges is suitable for standard 222 flat connection
Excellent chemical compatibility, suitable for filtering many corrosive liquids
Easy to install and diassemble.
It can save a lot of installation space.
Semiconductor and electronics
Pharmaceutical and biotechnology
Chemical industry
Food and beverage
New energy and lab
Material: PFA
Sealing ring material: EPDM, FKM, FEP
Locking ring: PVDF/PP

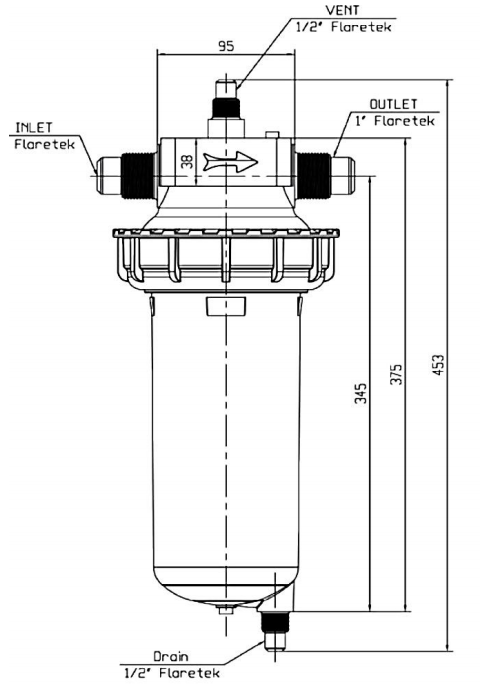

Exhaust and sewage outlet: 1/2" flaretek
Max operating temperature: 100℃
Max inlet pressure: 0.3Mpa (100℃); 0.7Mpa(25℃)
Optional specifications: 10", 20"
Filter cartridge end caps: 222 flat
