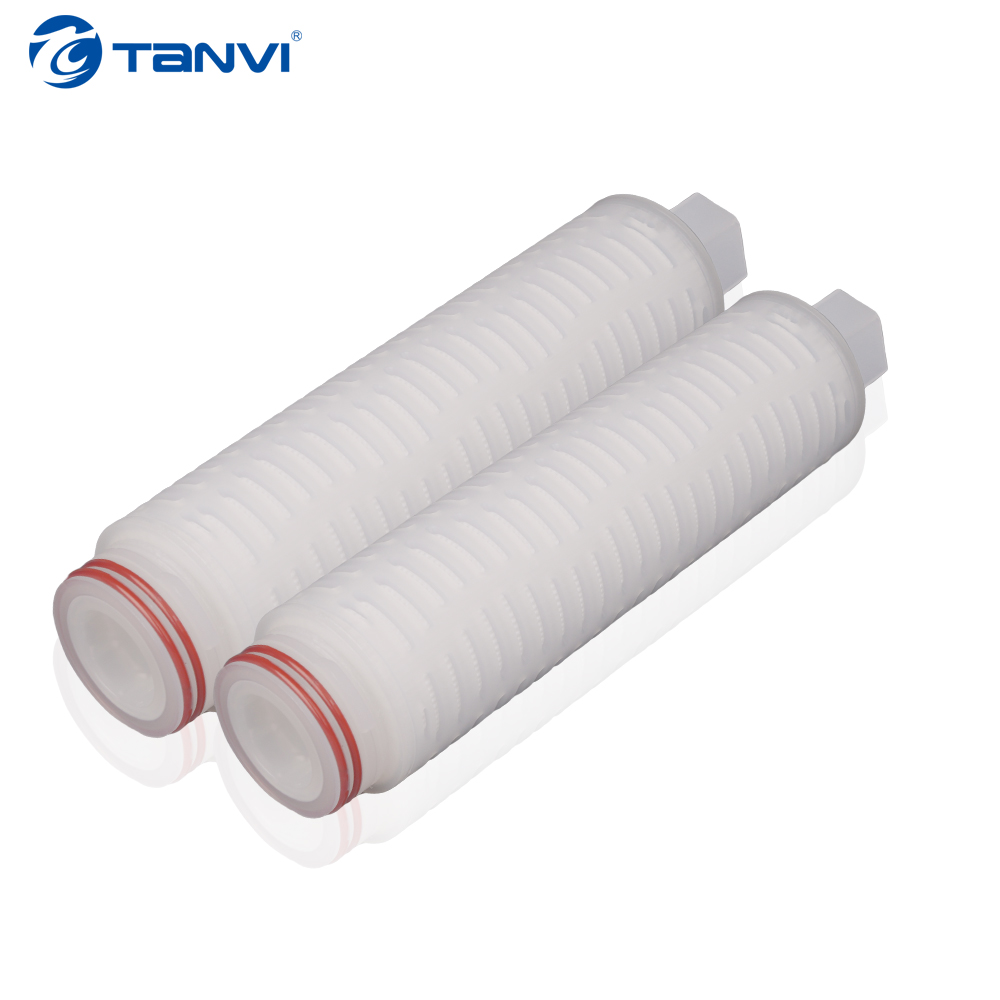

Hydrohpilic PVDF pleated filter cartridge adopts natural hydrophobic PVDF composite filter media which has extremely strong corrosion resistance and oxidation resistance. Acrylic material, made by hot-melt welding, without any adhesive, no medium off drop. It can be used for sterilization and filtration of compressed air, respirators and other gases and strong corrosive, strong oxidizing and other liquid sterilization and filtration, especially in tolerating ozone and low adsorption protein, the PVDF pleated filter cartridge is preferably selected.
High transfer protein, minimal protein adsorption.
Absolute sterilization can be guaranteed under wet or dry conditions.
Each filter cartridge has an independent serial number, which can fully trace the production batch.
The filter cartridge is 100% integrity tested before delivery
Free of resins and surfactants, broad solvent compatibility
culture medium filtration
Blood products filtration
Biological reagent filtration
Solvent solvent sterilization filtration.
Filter Media | Hydrophilic PVDF |
Support diversion layer | PP |
Extended/Center core | PP |
Interface lining | No or stainless steel |
O-ring material | Silicone,Viton,EPDM,Buna-N |
Maximum working temperature | 80℃ (△P≤0.10Mpa) |
Maximum working pressure | Forward 4.2bar；Reverse1.5bar （25℃） |
PH range | 1-14 |
Cleanliness | The product itself does not have any foreign matter such as particles, fibers, etc. |
Biosafety | All ingredients meet USP (United States Pharmacopeia) Class VI plastic testing |
